Lightweight Boom 300T Crawler Crane For Precise And Lifting Operations

Brand Name : XCMG

Model Number : XGC 300t

Place of Origin : China

MOQ : One Crane

Price : Negotiable Price

Payment Terms : L/C,T/T

Supply Ability : Supply According to Customer Needs

Delivery Time : According to Order Confirmation

Packaging Details : Packing According to Customer Requirements

Fuel Tank Capacity : 1,500 liters

Counterweight : 100 tons

Max Lifting Capacity : 300 tons

Engine Power : 242 kW

Max Travel Speed : 1.5 km/h

Max Lifting Height : 120m

Max Ground Pressure : 0.1 MPa

Main Winch Line Pull : 300 kN

Crawler Length : 10.5 m

Auxiliary Winch Line Pull : 150 kN

Contact Now

XGC 300t(-I)Crawler Crane Technical Specifications


Crawler crane models: XGC 300t(-I)
Max rated lifting capacity: 300t
Maximum lifting moment: 1865t.m

Lightweight boom working conditions_ Characteristics of lightweight boom main hook with boom end pulley auxiliary hook (LBS/1)

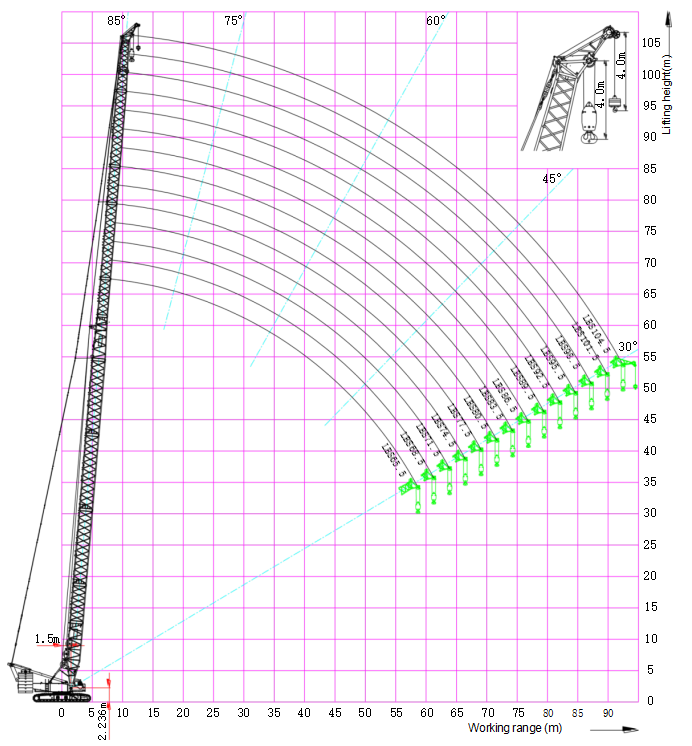

Lightweight boom working conditions_Working range of lightweight boom main hook with boom end pulley auxiliary hook (LBS/1)

Lightweight Boom 300T Crawler Crane For Precise And Lifting Operations

Lightweight boom working conditions_Working range of lightweight boom main hook with boom end pulley auxiliary hook (LBS/1)

Lightweight boom working condition_with boom end pulley hook LBS/1_115t+40t lightweight boom hook performance

LBS/1

Lightweight main boom length(m)

Radians

65.5

68.5

71.5

74.5 *

77.5 *

80.5 *

83.5 **

86.5 **

89.5 **

92.5 **

95.5 **

98.5 **

101.5 **

104.5 **

(m)

t

t

t

t

t

t

t

t

t

t

t

t

t

9

87.5

10

86.5

83.5

78.8

71.7

11

85.5

82.5

77.2

69.9

68.6

67.8

66.1

54.1

12

84.5

81.5

75.6

68.3

67.2

66.7

65.3

52.9

50.6

46.1

43.3

37.2

13

81.2

79.3

74.2

66.5

65.9

65.4

64.7

51.7

49.6

45.1

42.8

36.3

35.6

14

78.8

77.0

72.8

64.4

63.5

63.2

62.0

50.4

49.5

44.3

42.3

35.5

34.4

33.6

15

75.0

73.2

69.4

62.5

61.6

60.7

59.9

49.2

48.4

43.0

41.7

34.5

34.1

33.0

16

71.3

69.6

66.2

60.7

59.5

58.8

58.3

48.1

47.4

42.7

41.3

33.8

33.3

32.2

18

64.8

63.2

60.0

57.3

56.9

56.5

55.6

45.9

45.4

41.2

40.5

32.8

32.2

30.7

20

58.6

57.2

54.6

53.2

52.9

53.6

50.1

43.5

42.9

41.0

40.1

31.4

31.2

29.9

22

52.6

51.4

49.1

48.7

49.8

51.7

47.7

41.3

40.7

39.5

39.4

30.1

30.3

29.1

24

47.3

46.2

44.1

45.4

47.5

48.7

40.6

39.2

38.8

39.5

38.7

28.9

29.2

28.3

26

42.4

41.4

39.8

43.2

44.5

44.0

39.8

37.4

37.1

37.8

38.0

27.8

28.1

27.5

28

38.0

37.1

35.9

40.3

40.1

39.9

35.6

35.3

35.0

36.5

36.9

26.8

27.1

26.8

30

34.2

33.4

32.4

36.3

36.0

35.8

31.9

32.0

33.5

34.4

33.9

25.8

26.2

26.0

32

30.9

30.1

29.4

32.8

32.6

32.3

29.0

30.6

31.7

31.4

30.9

24.9

25.4

25.3

34

28.2

27.4

26.7

29.8

29.5

29.3

27.8

29.0

28.7

28.4

28.2

24.1

24.3

24.3

36

25.8

25.0

24.1

27.2

26.9

26.7

26.6

26.3

26.1

25.8

25.5

22.9

23.5

23.7

38

23.5

22.8

21.9

24.8

24.5

24.3

24.2

24.0

23.7

23.4

23.1

22.2

22.8

23.0

40

21.4

20.9

19.8

22.7

22.4

22.2

22.1

21.9

21.6

21.3

21.0

21.4

21.2

20.9

42

19.6

18.8

17.9

20.9

20.6

20.3

20.2

20.0

19.7

19.5

19.2

19.6

19.3

19.0

44

17.8

17.0

16.3

19.2

18.9

18.7

18.6

18.3

18.0

17.8

17.5

17.9

17.6

17.3

46

16.2

15.4

14.9

17.6

17.3

17.1

17.0

16.8

16.5

16.2

15.9

16.3

16.0

15.8

48

14.7

14.0

13.5

16.2

16.0

15.7

15.6

15.4

15.1

14.8

14.8

14.8

14.6

14.4

50

13.5

12.7

12.6

15.0

14.7

14.4

14.3

14.1

13.8

13.5

13.2

13.6

13.4

13.1

52

12.2

11.4

11.3

13.8

13.5

13.3

13.2

12.9

12.6

12.4

12.1

12.5

12.2

11.9

54

11.1

10.4

10.3

12.3

12.0

11.8

11.7

11.4

11.1

10.9

10.6

11.0

10.7

10.4

58

8.8

8.1

7.0

10.8

10.5

10.3

10.2

9.9

9.6

9.4

9.0

9.5

9.2

8.9

60

7.1

6.0

9.9

9.6

9.4

9.3

9.1

8.8

8.5

8.2

8.6

8.3

8.0

64

8.3

8.1

7.8

7.7

7.5

7.2

6.9

6.6

7.0

6.7

6.5

68

6.7

6.5

6.4

6.1

5.8

5.6

5.3

5.7

5.4

5.1

72

5.1

4.9

4.6

4.3

4.0

4.5

4.2

3.9

76

3.8

3.5

3.3

3.0

3.4

3.1

Notes:

1. "*" Light main boom combination requires the use of 1.25m waist rope. "**" Light main boom combination requires the use of 1.25m and 2.62m waist rope.

2. The tower arm rear pull plate needs to be removed from each boom section, and the tower arm guide pulley needs to be installed at the main boom reducer.
