Brand Name : XCMG
Model Number : XGC 300t
Place of Origin : China
MOQ : One Crane
Price : Negotiable Price
Payment Terms : L/C,T/T
Supply Ability : Supply According to Customer Needs
Delivery Time : According to Order Confirmation
Packaging Details : Packing According to Customer Requirements
Max Lifting Moment : 1600 t·m
Maximum Travel Speed : 1.5 km/h
Hoisting Speed : 120 m/min
Crawler Length : 10.5 m
Max Travel Speed : 1.5km/h
Number Of Axles : 3
Max Lifting Height : 110m
Engine Power : 447 kW
Maximum Lifting Capacity : 300 tons
Maximum Radius : 80 m
Boom Length : 18m-102m
Max Working Radius : 100m
Crawler crane models: XGC 300t(-I)
Max rated lifting capacity: 300t
Maximum lifting moment: 1865t.m
Lightweight boom working condition_ Characteristics of lightweight boom hook without boom end pulley (LB/1)

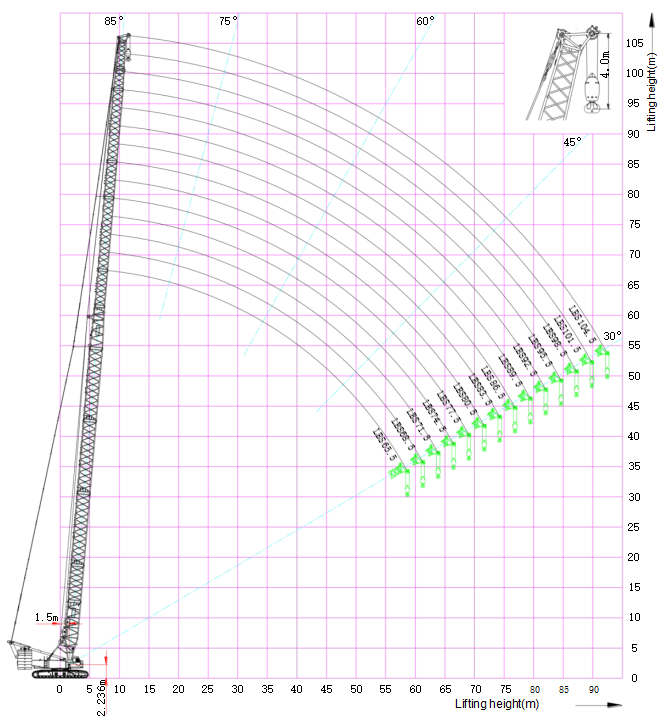

Lightweight main boom working condition_Working range diagram of lightweight main boom main hook without arm end pulley (LB/1)
Lightweight main boom working condition_Working range diagram of lightweight main boom main hook without arm end pulley auxiliary hook (LB/1)
Lightweight boom working condition_no boom end pulley LB/1_115t+40t lightweight boom main hook performance
LB/1 | Lightweight main boom length(m) | |||||||||||||
Radians | 65.5 | 68.5 | 71.5 | 74.5 * | 77.5 * | 80.5 * | 83.5 ** | 86.5 ** | 89.5 ** | 92.5 ** | 95.5 ** | 98.5 ** | 101.5 ** | 104.5 ** |
(m) | t | t | t | t | t | t | t | t | t | t | t | t | t |
|
9 | 91.0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
10 | 90.0 | 87.0 | 82.3 | 75.2 |
|
|
|
|
|
|
|
|
|
|
11 | 89.0 | 86.0 | 80.7 | 73.4 | 72.1 | 71.3 | 69.6 | 57.6 |
|
|
|
|
|
|
12 | 88.0 | 85.0 | 79.1 | 71.8 | 70.7 | 70.2 | 68.8 | 56.4 | 54.1 | 50.0 | 48.0 | 41.0 |
|
|
13 | 84.7 | 82.8 | 77.7 | 70.0 | 69.4 | 68.9 | 68.2 | 55.2 | 53.1 | 49.6 | 47.2 | 39.8 | 39.1 | 38.0 |
14 | 82.3 | 80.5 | 76.3 | 67.9 | 67.0 | 66.7 | 65.5 | 53.9 | 53.0 | 49.0 | 46.7 | 39.0 | 37.9 | 36.8 |
16 | 74.8 | 73.1 | 69.7 | 64.2 | 63.0 | 64.0 | 63.5 | 51.6 | 50.9 | 48.0 | 46.2 | 37.3 | 36.8 | 35.7 |
18 | 68.3 | 66.7 | 63.5 | 60.8 | 60.4 | 62.5 | 62.0 | 49.4 | 48.9 | 47.8 | 45.8 | 36.3 | 35.7 | 34.2 |
20 | 62.1 | 60.7 | 58.1 | 56.7 | 57.6 | 57.1 | 55.8 | 47.0 | 46.4 | 46.2 | 44.8 | 34.9 | 34.7 | 33.4 |
22 | 56.1 | 54.9 | 53.0 | 52.4 | 53.3 | 55.2 | 51.2 | 44.8 | 44.2 | 44.5 | 44.0 | 33.6 | 33.8 | 32.6 |
24 | 50.8 | 49.7 | 47.6 | 48.9 | 51.0 | 52.2 | 45.8 | 42.7 | 42.3 | 43.0 | 42.9 | 32.4 | 32.7 | 31.8 |
26 | 45.9 | 44.9 | 43.3 | 46.7 | 48.0 | 47.5 | 43.3 | 40.9 | 40.6 | 41.3 | 41.5 | 31.3 | 31.6 | 31.0 |
28 | 41.5 | 40.6 | 39.4 | 43.8 | 43.6 | 43.4 | 39.1 | 38.8 | 38.5 | 40.0 | 40.4 | 30.3 | 30.6 | 30.3 |
30 | 37.7 | 36.9 | 35.9 | 39.8 | 39.5 | 39.3 | 35.4 | 35.5 | 37.0 | 37.9 | 37.4 | 29.3 | 29.7 | 29.5 |
32 | 34.4 | 33.6 | 32.9 | 36.3 | 36.1 | 35.8 | 32.5 | 34.1 | 35.2 | 34.9 | 34.4 | 28.4 | 28.9 | 28.8 |
34 | 31.7 | 30.9 | 30.2 | 33.3 | 33.0 | 32.8 | 31.3 | 32.5 | 32.2 | 31.9 | 31.7 | 27.6 | 27.8 | 27.8 |
36 | 29.3 | 28.5 | 27.6 | 30.7 | 30.4 | 30.2 | 30.1 | 29.8 | 29.6 | 29.3 | 29.0 | 26.4 | 27.0 | 27.2 |
38 | 27.0 | 26.3 | 25.4 | 28.3 | 28.0 | 27.8 | 27.7 | 27.5 | 27.2 | 26.9 | 26.6 | 25.7 | 26.3 | 26.5 |
40 | 24.9 | 24.4 | 23.3 | 26.2 | 25.9 | 25.7 | 25.6 | 25.4 | 25.1 | 24.8 | 24.5 | 24.9 | 24.7 | 24.4 |
42 | 23.1 | 22.3 | 21.4 | 24.4 | 24.1 | 23.8 | 23.7 | 23.5 | 23.2 | 23.0 | 22.7 | 23.1 | 22.8 | 22.5 |
44 | 21.3 | 20.5 | 19.8 | 22.7 | 22.4 | 22.2 | 22.1 | 21.8 | 21.5 | 21.3 | 21.0 | 21.4 | 21.1 | 20.8 |
46 | 19.7 | 18.9 | 18.4 | 21.1 | 20.8 | 20.6 | 20.5 | 20.3 | 20.0 | 19.7 | 19.4 | 19.8 | 19.5 | 19.3 |
50 | 18.0 | 17.8 | 16.1 | 18.5 | 18.2 | 17.9 | 17.8 | 17.6 | 17.3 | 17.0 | 16.7 | 17.1 | 16.9 | 16.6 |
52 | 16.5 | 16.0 | 14.8 | 17.3 | 17.0 | 16.8 | 16.7 | 16.4 | 16.1 | 15.9 | 15.6 | 16.0 | 15.7 | 15.4 |
58 | 12.3 | 11.6 | 10.5 | 14.3 | 14.0 | 13.8 | 13.7 | 13.4 | 13.1 | 12.9 | 12.5 | 13.0 | 12.7 | 12.4 |
60 |
| 10.6 | 9.5 | 13.4 | 13.1 | 12.9 | 12.8 | 12.6 | 12.3 | 12.0 | 11.7 | 12.1 | 11.8 | 11.5 |
64 |
|
|
| 11.8 | 11.6 | 11.3 | 11.2 | 11.0 | 10.7 | 10.4 | 10.1 | 10.5 | 10.2 | 10.0 |
68 |
|
|
|
| 10.2 | 10.0 | 9.9 | 9.6 | 9.3 | 9.1 | 8.8 | 9.2 | 8.9 | 8.6 |
72 |
|
|
|
|
|
| 8.6 | 8.4 | 8.1 | 7.8 | 7.5 | 8.0 | 7.7 | 7.4 |
76 |
|
|
|
|
|
|
| 7.3 | 7.0 | 6.8 | 6.5 | 6.9 | 6.6 | 6.3 |
80 |
|
|
|
|
|
|
|
|
| 5.8 | 5.5 | 5.9 | 5.6 | 5.3 |
84 |
|
|
|
|
|
|
|
|
|
| 4.6 | 5.0 | 4.7 | 4.5 |
88 |
|
|
|
|
|
|
|
|
|
|
|
| 3.9 | 3.7 |
Notes:
1. "*" Light main boom combination requires the use of 1.25m waist rope. "**" Light main boom combination requires the use of 1.25m and 2.62m waist rope.
2. The tower arm rear pull plate needs to be removed from each boom section, and the tower arm guide pulley needs to be installed at the main boom reducer.
![]() |
